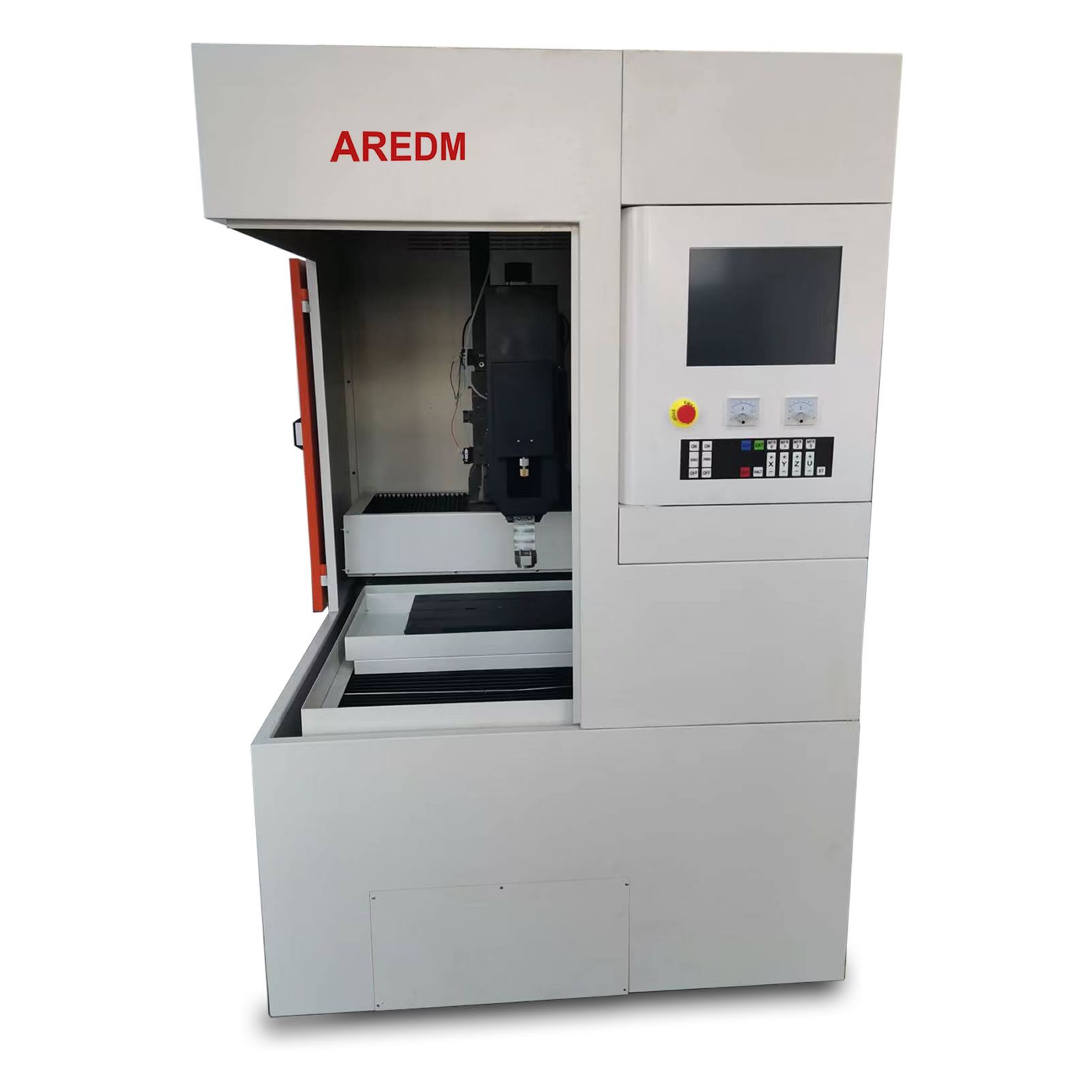

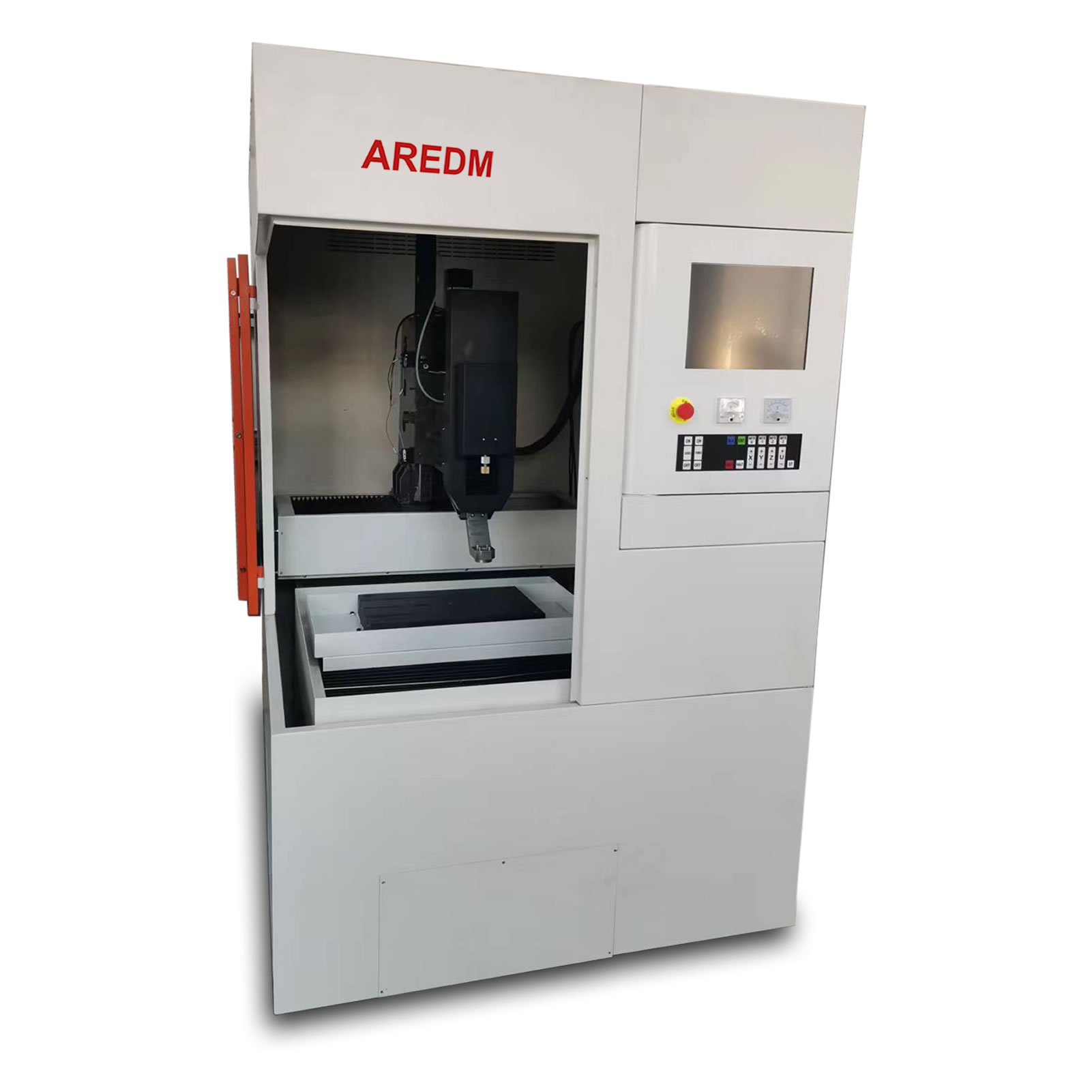

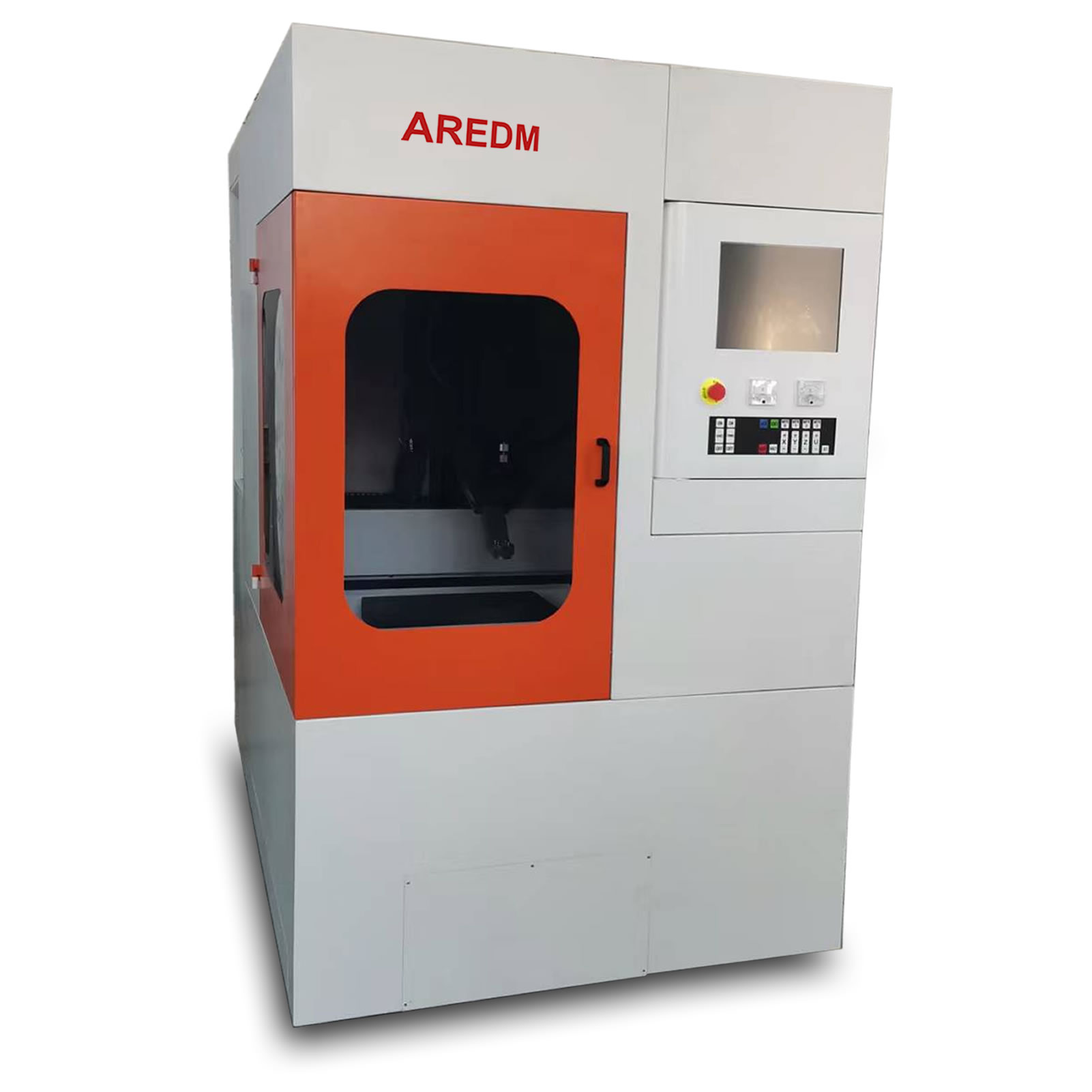

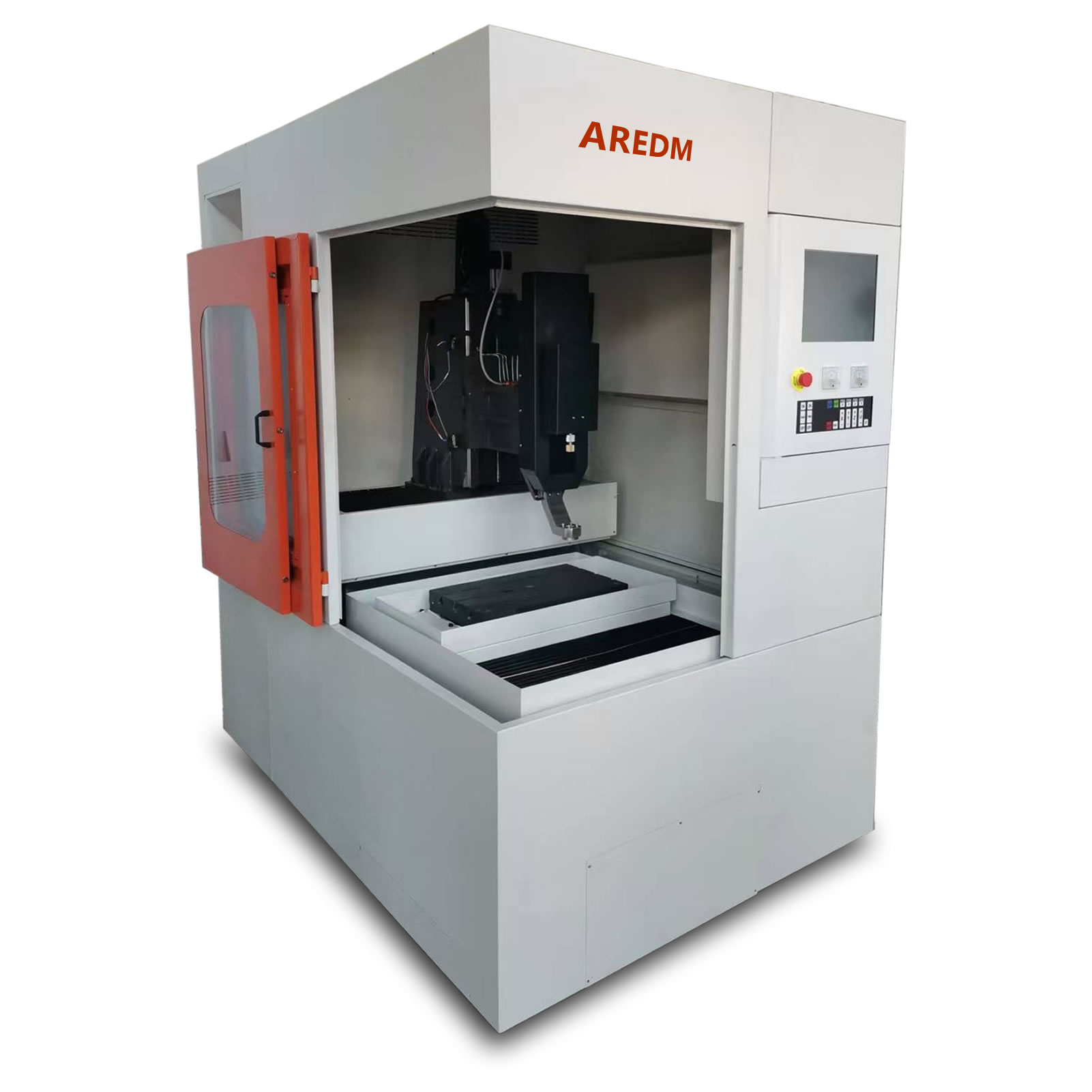

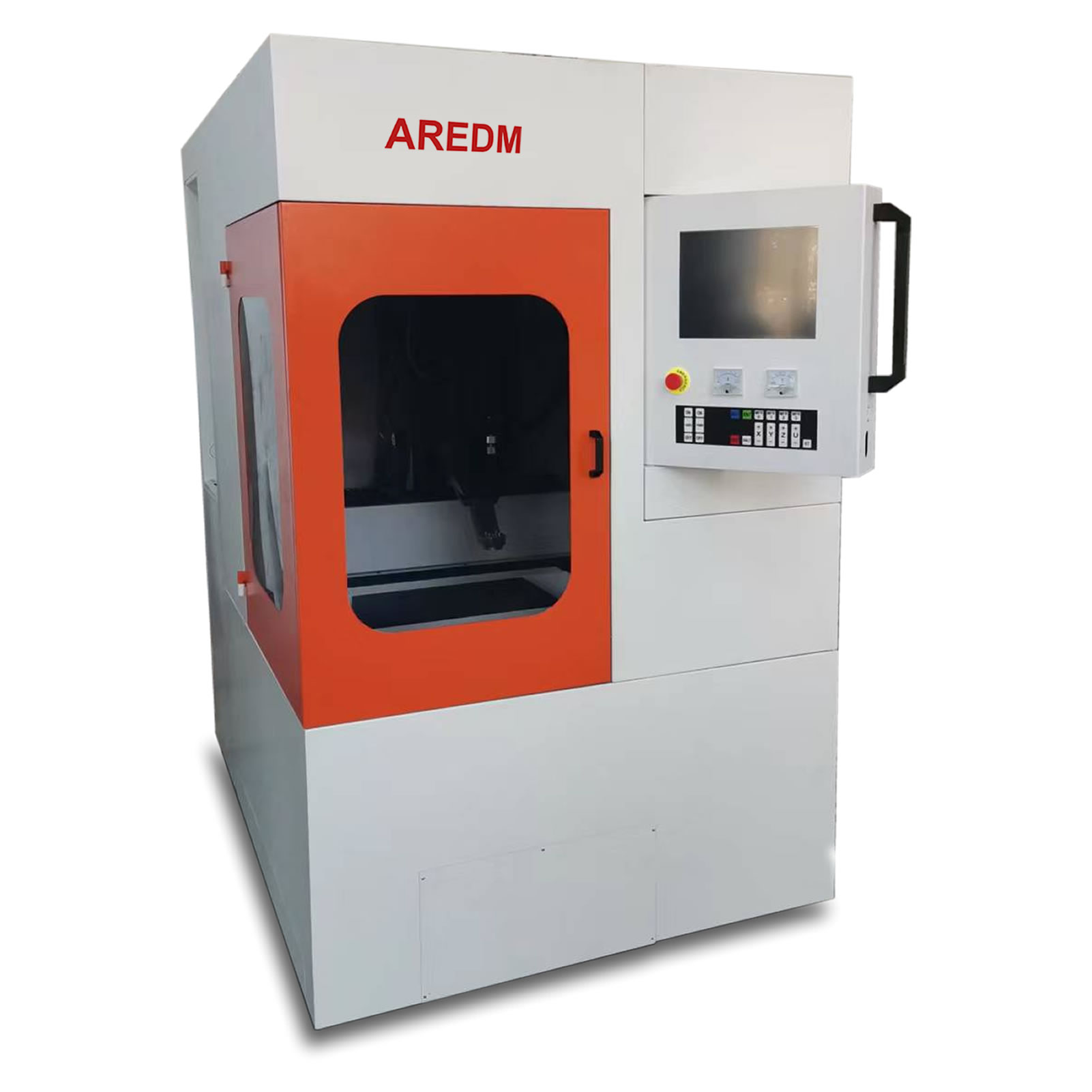

AD40 four-axis small hole driller

Similar products
  • AD40 four-axis micro hole driller
  • AD65 composite hole driller
  • AD40 six-axis micro hole driller
  • AD40 six-axis small hole driller
  • Model: AD40S-A4
  • Name: AD40 four-axis small hole driller
  • Full Name: 4-aixs Small Hole EDM Drilling Machine Tool
  • Features:
    1. Ideal for processing of group holes
    2. Support processing in CAD
    3. 100% penetration recognition
    4. Easy network for smart factory
    5. Terminal capacitor for higher efficiency
    6. Stable and fine switching power supply
    7. Self-developed precision six-axis EDM CNC system
    8. Rich processing library and parameters
  • Model number
  • Processible hole range
  • Max depth ratio
  • Axis
  • Worktable size
  • XYZWAC axis route
  • Positioning accuracy
  • Repositioning accuracy
  • Max load height
  • Max load weight
  • Processing efficiency
  • Penetration detection
  • Max power
  • Working voltage
  • Main size
  • AD40S-A4
  • Φ0.3-Φ3mm
  • 100 : 1
  • 4
  • 400*300mm
  • 400*300*200*300mm
  • 0.01/0.01/0.01/0.01mm
  • 0.005/0.005/0.005/0.005mm
  • 100kg
  • 100%
  • 6KVA
  • 380VAC
  • 133*188*211cm(W*L*H)
