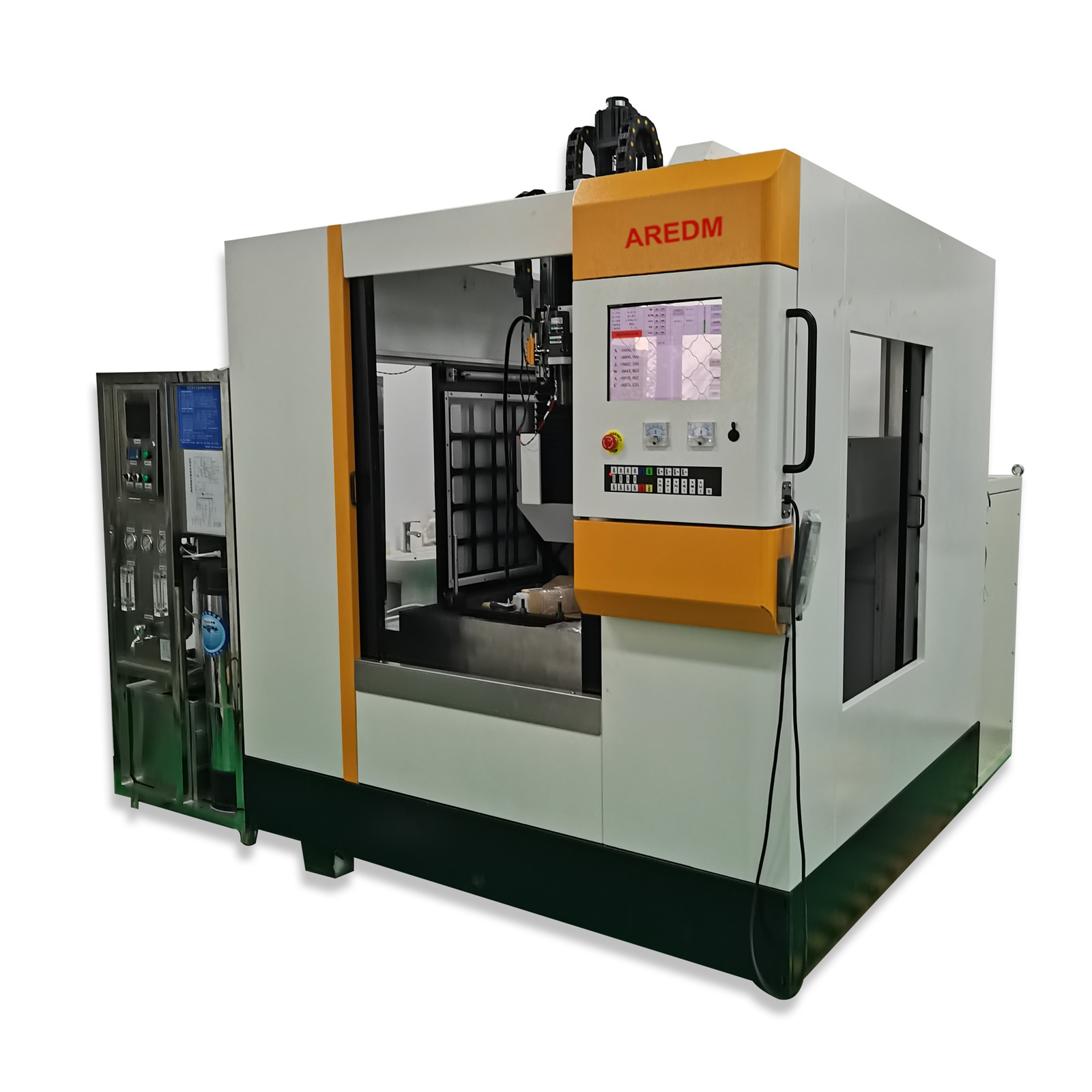

AD65 composite hole driller

Similar products
  • AD40 four-axis micro hole driller
  • AD40 four-axis small hole driller
  • AD40 six-axis micro hole driller
  • AD40 six-axis small hole driller
  • Model: AD65-A7
  • Name: AD65 composite hole driller
  • Full Name: AD65 EDM & Mechanical drilling machine
  • Features:
    1. Edm + drilling dual spindle composite processing
    2. Effective removal of remelt layer
    3. No heat affected zone
    4. No micro-cracks
    5. 100% penetration recognition
    6. Straight hole, oblique hole surface smooth, good roundness
    7. Long time continuous processing consistency
    8. It can process wide aperture range and deep depth
    9. Discharge pulse control fine, environmental protection without carbon
    10. A variety of materials can be processed
  • Model number
  • Processible hole range
  • Max depth ratio
  • Axis
  • Worktable size
  • XYZWAC axis route
  • Positioning accuracy
  • Repositioning accuracy
  • Max load height
  • Max load weight
  • Processing efficiency
  • Penetration detection
  • Max power
  • Working voltage
  • Main size
  • AD65-A7
  • Φ0.05-Φ6mm
  • 100 ：1
  • 7
  • Φ150mm
  • 600*500*400*300*300mm ±90°*360°
  • 0.01/0.01/0.01/0.01/0.01mm / 30''/30''
  • 0.005/0.005/0.005/0.005mm/10''/5''
  • 0°50kg / 90° 30kg
  • 100%
  • 9KVA
  • 380VAC
  • Host: 2000*2500*2600mm CNC cabinet: 600*600*1800mm
