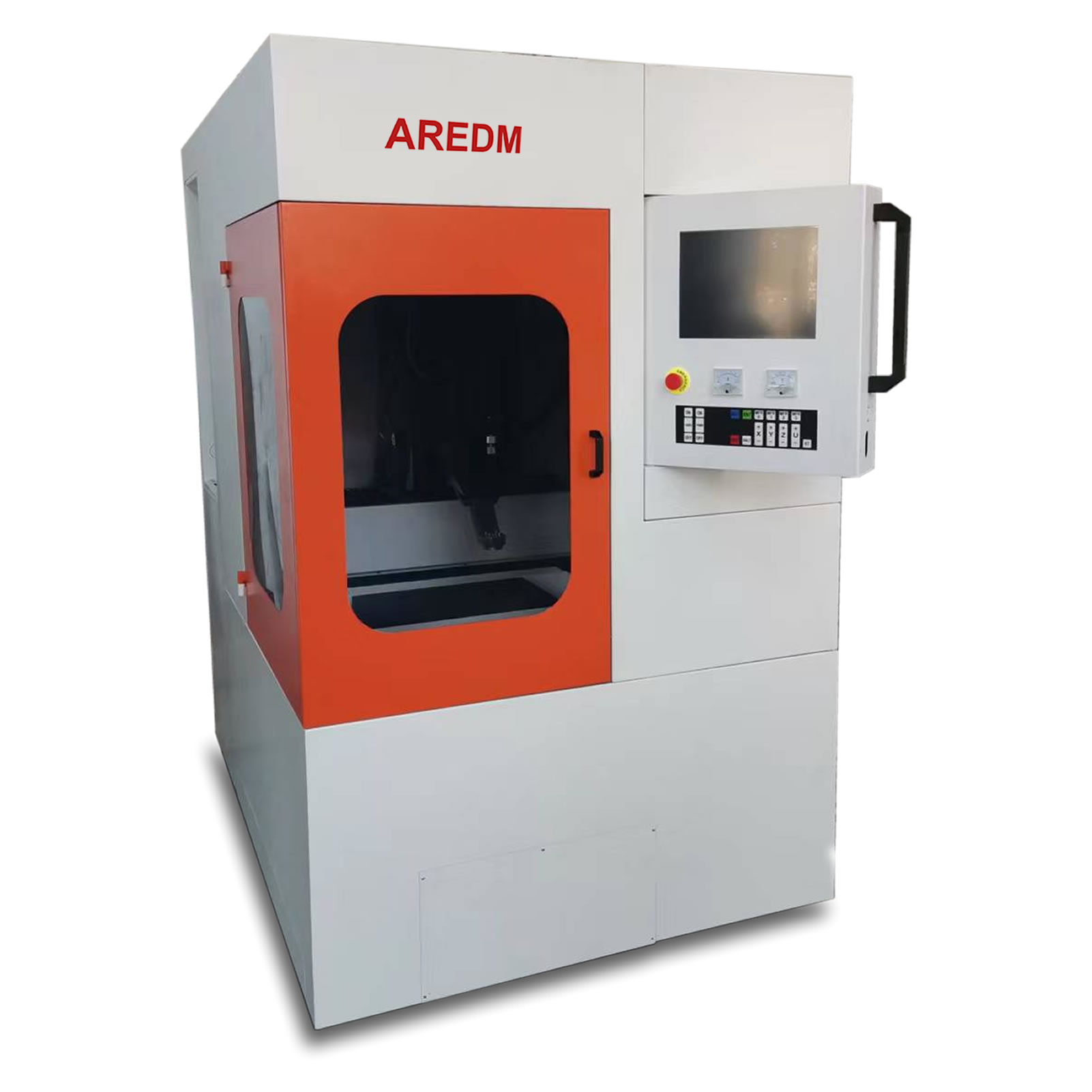

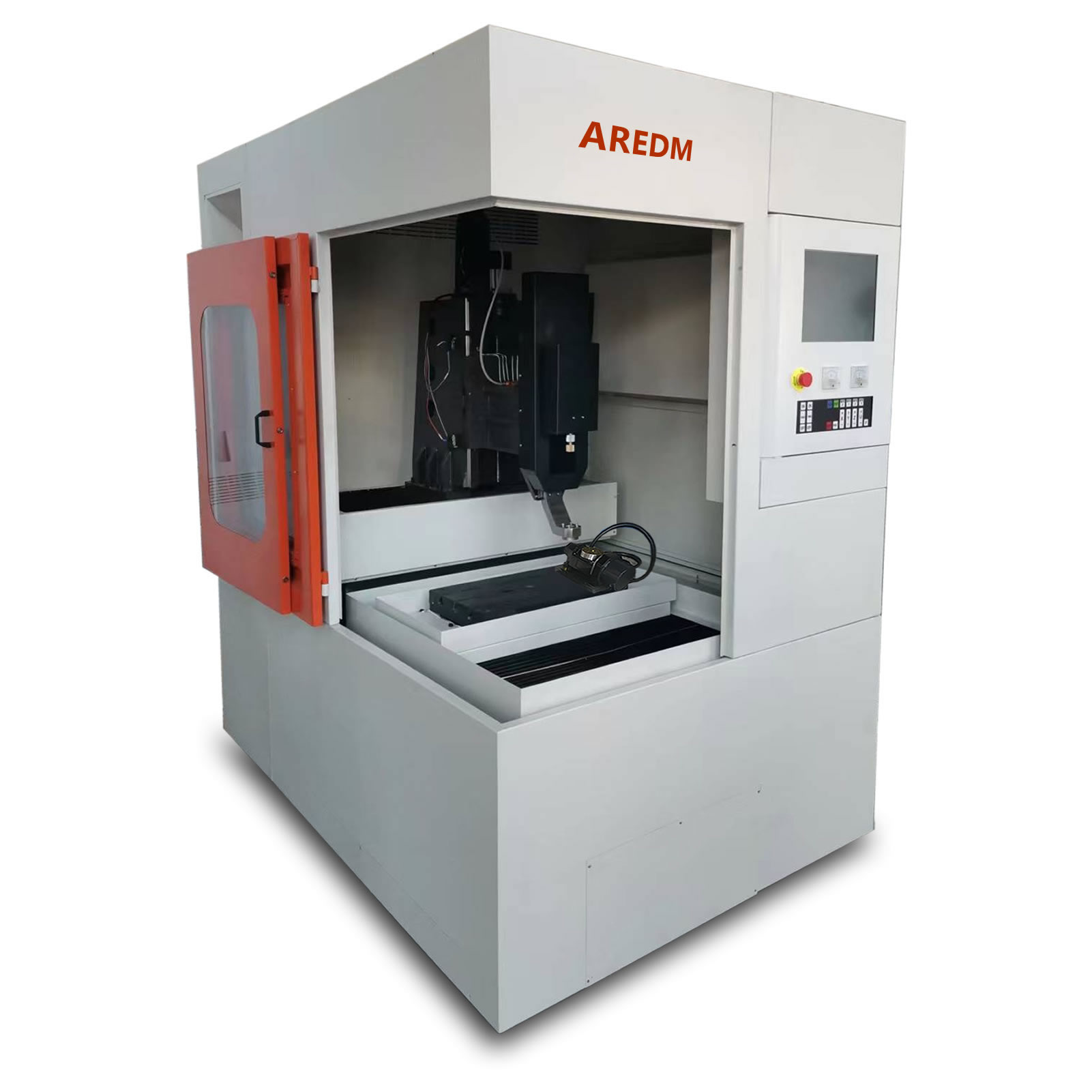

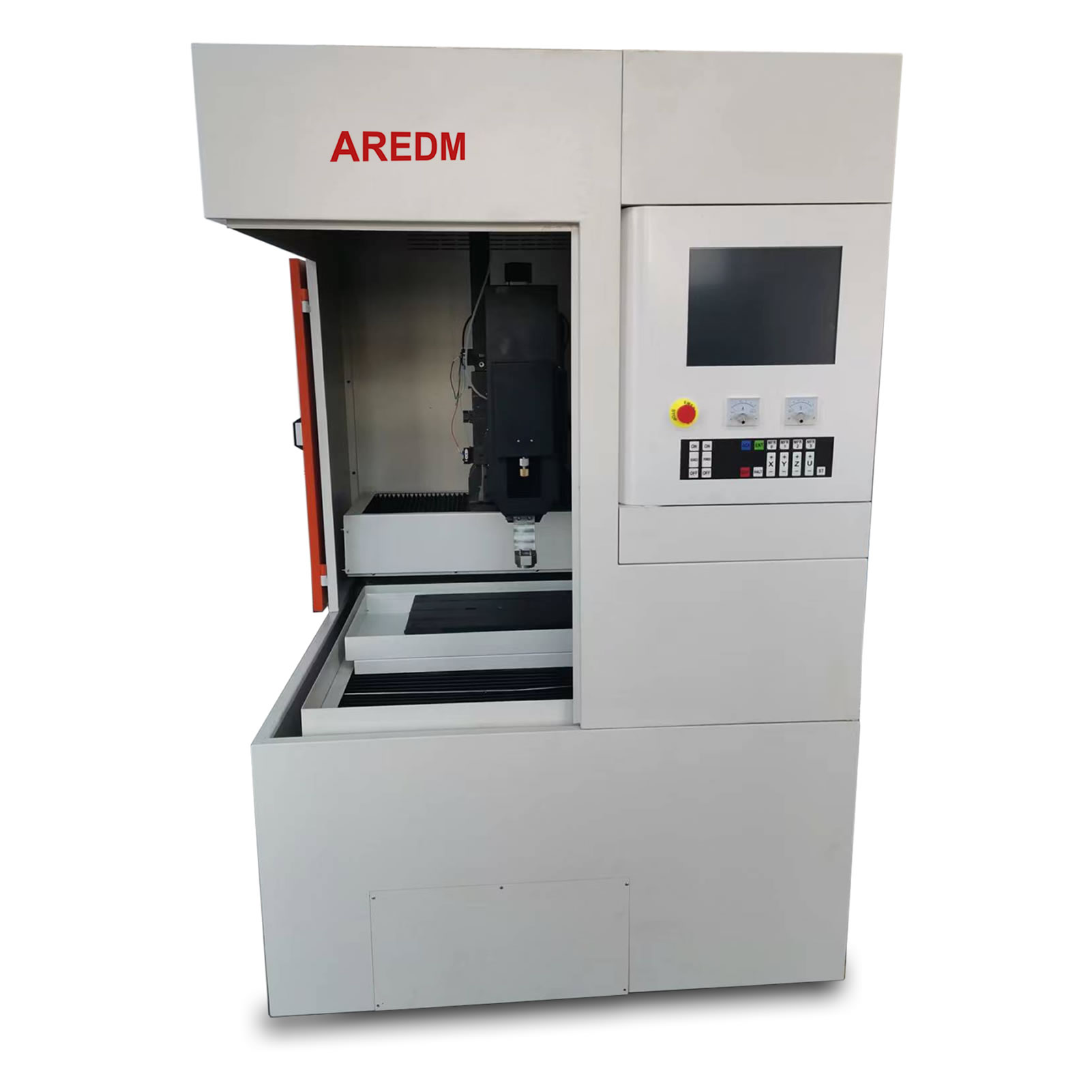

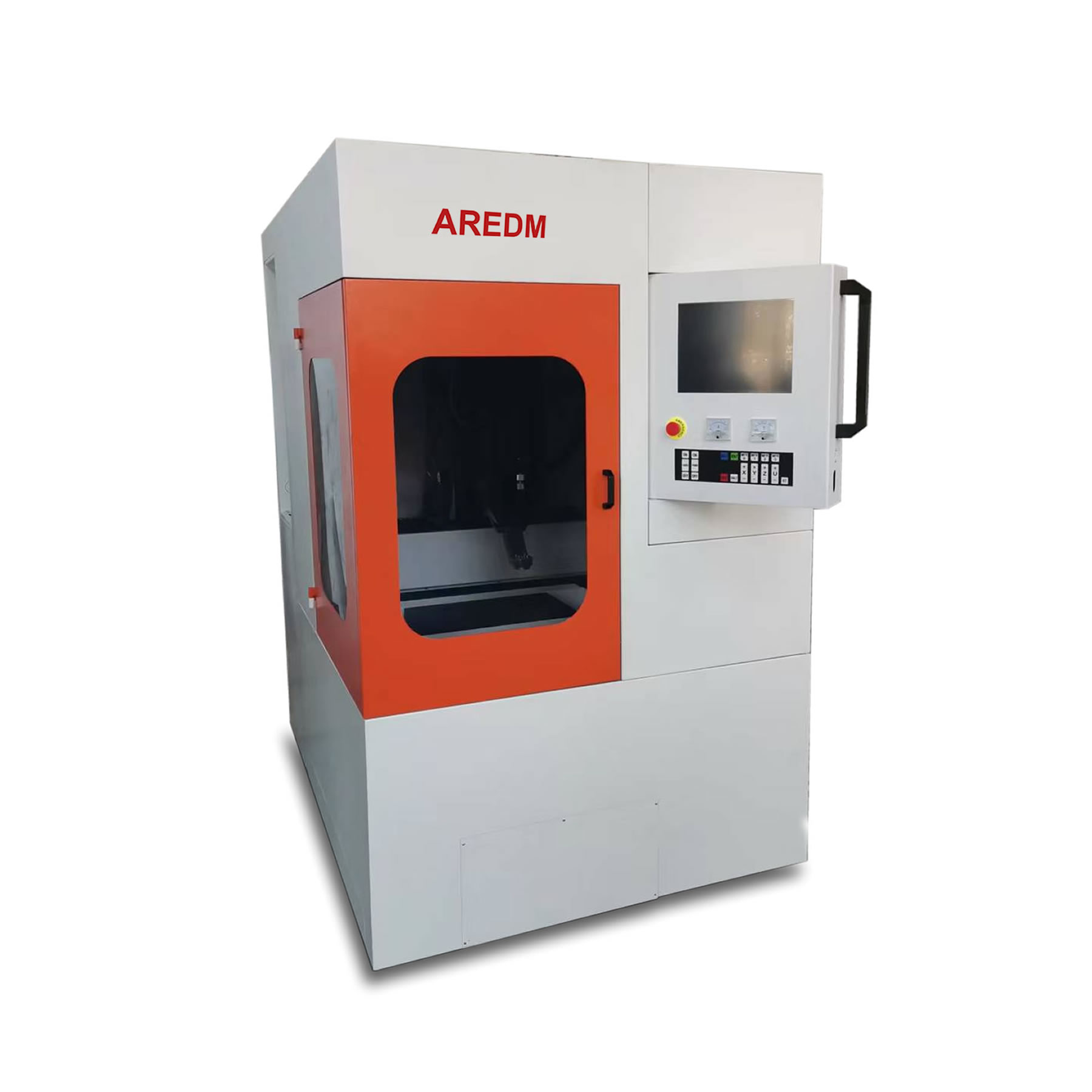

AD40 six-axis small hole driller

Similar products
  • AD40 four-axis micro hole driller
  • AD65 composite hole driller
  • AD40 four-axis small hole driller
  • AD40 six-axis micro hole driller
  • Model: AD40S-A6
  • Name: AD40 six-axis small hole driller
  • Full Name: 6-axis EDM Small Hole Driller
  • Features:
    1. Ideal for processing of group holes
    2. Support processing in CAD
    3. 100% penetration recognition
    4. Easy network for smart factory
    5. Terminal capacitor for higher efficiency
    6. Stable and fine switching power supply
    7. Self-developed precision six-axis EDM CNC system
    8. Rich processing library and parameters
  • Model number
  • Processible hole range
  • Max depth ratio
  • Axis
  • Worktable size
  • XYZWAC axis route
  • Positioning accuracy
  • Repositioning accuracy
  • Max load height
  • Max load weight
  • Processing efficiency
  • Penetration detection
  • Max power
  • Working voltage
  • Main size
  • AD40S-A6
  • Φ0.3-Φ3mm
  • 100 : 1
  • 6
  • Φ125mm
  • 400*300*200*300mm*±95°*360°
  • 0.01/0.01/0.01/0.01mm/30''/30''
  • 0.005/0.005/0.005/0.005mm/20''/10''
  • 0°15kg / 90° 10kg
  • 100%
  • 6KVA
  • 380VAC
  • 133*188*211cm(W*L*H)
